High performance in an ultra-compact design
The 4000 Series micro gas diaphragm pump delivers exceptional performance in Dynaflo’s smallest package, providing reliable vacuum and compression in an ultra-compact design that is ideal for battery-powered devices where space, efficiency, and runtime are critical.
| Max Flow | up to 360 mL/min |
| Max Pressure | 20 psig (1.4 bar) |
| Max Vacuum | 18 inHg (400 mbar abs) |
| Operating Voltage | 3.7 to 4.2 VDC |
| Price Range | Call for Pricing |
Why you will love this pump
The 4000 Series is the smallest diaphragm pump Dynaflo has ever engineered. With its minimal footprint and lightweight build, it integrates seamlessly into miniaturized and portable systems where every millimeter counts.
Despite its size, the 4000 Series pumps deliver an outstanding flow rate of up to 360 mL/min, ensuring reliable performance even in demanding applications that require steady and consistent output.
Optimized for low current draw, the 4000 Series operates efficiently on battery power. Depending on battery size, it achieves up to 31 hours of continuous runtime, making it ideal for portable and off-grid devices.
The dual-function design allows the pump to be used for both vacuum and pressure applications. This versatility makes it suitable across a wide range of industries and system requirements.
With a maximum current draw of just 112 mA, the pump minimizes energy usage while maintaining high performance, extending device runtime and reducing overall power needs.
Built with durable materials and precision engineering, the 4000 Series offers dependable operation. Voltage and mounting options can be tailored to match your specific application needs.
Typical Specifications
Dynaflo, Inc. can tailor the 4000 Series micro gas diaphragm pumps to meet your unique requirements, test conditions, and packaging upon request. The following are typical specifications.

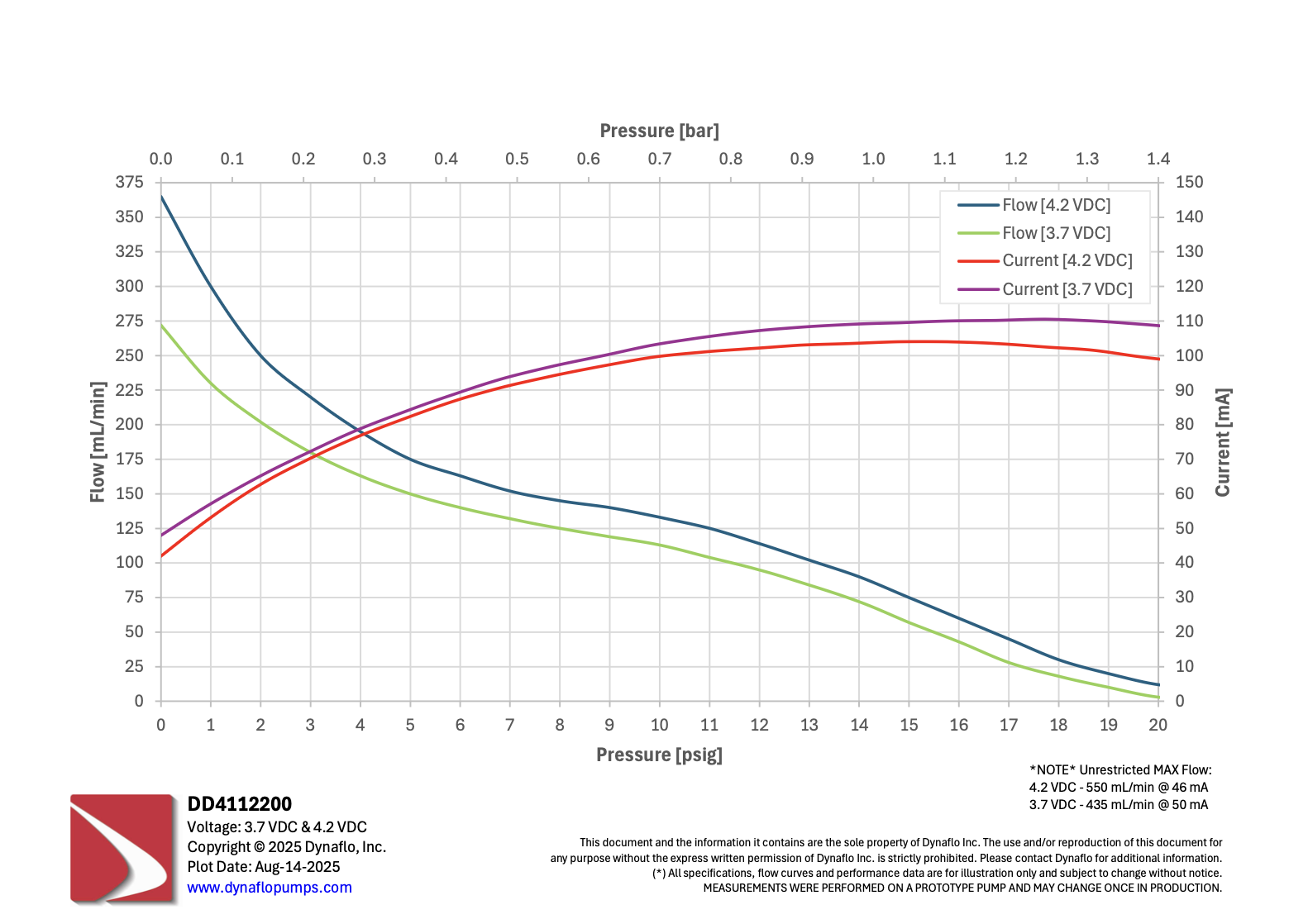

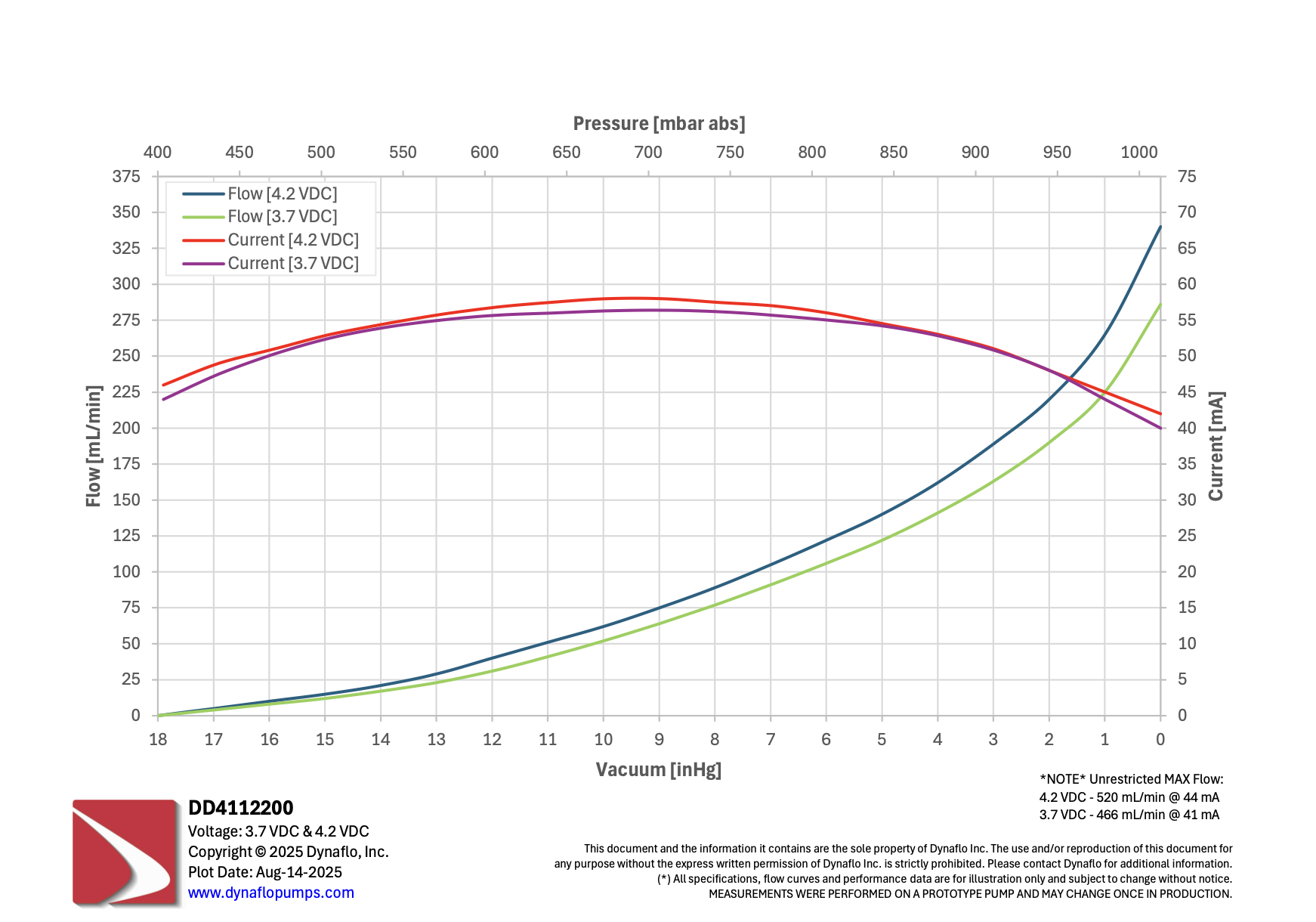

360 mL/min Micro Diaphragm Pump
Battery Runtime
| Max Flow | 360 mL/min |
| Max Pressure | 20 psig (1.4 bar) |
| Max Vacuum | 18 inHg (400 mbar abs) |
| Operating RPM | 4000 to 7000 RPM |
| Operating Voltage | 3.7 to 4.2 VDC |
|
Max Current Draw |
112 mA |
| Ambient / Media Temp | 41° F to 104° F (5° C to 40° C) |
| Weight | 0.5 oz (15 g) |
| Head Material | PC or custom |
| Diaphragm Material | Neoprene or custom |
| Valve Material | Silicone or custom |
| Port Orientation | Side-by-side |
| Wire / Connector | Flying lead or custom |
| Price Range | Call for Pricing |
| 2000 mAh | 17:51 h |
| 2500 mAh | 22:19 h |
| 3000 mAh | 26:47 h |
| 3500 mAh | 31:25 h |
Create your competitive edge
Dynaflo, Inc. provides diaphragm pump customization services to help your products stand out from the crowd. We can adjust flow, performance, motor, and mechanical options to fit your precise requirements—or design an entirely new pump unique to you. The most requested customization features include:
- Port configuration to minimize tubing
- Material options for diaphragms and valves
- Specialized wiring and connectors
- Distinct mounting specifications
- White labeling to provide exclusivity of the pump design
Building the perfect product together
Dynaflo, Inc. understands the importance of getting your products to market quickly. We provide skillful and confidential guidance throughout all phases of diaphragm pump development to create pumps that seamlessly integrate into your products and provide you with added value.
We work with your engineers and product managers to discuss the current market requirements your product must meet and the features that will delight your customers. We use this information to determine your product's proper flow rate, cycle time, power, and vacuum/pressure levels.
We provide complimentary trial periods for pumps that meet your specifications so you can quickly test and evaluate how the pump will perform in your product - for free. We then work together to determine if modifications need to be made to the pump's standard specifications to ensure it meets all your requirements, mounts quickly, and is easy to maintain.
If changes are required, Dynaflo's Engineering will fine-tune the material, mechanical, electrical and mounting options of the pump to fit the precise requirements of your product.
We inspect and test 100% in line with your requests before sending your diaphragm pump for final testing in your products.
Once all tests have passed, we ship your diaphragm pumps and spare parts. It is important to us to minimize the overall running costs of our diaphragm pumps, and we take this into account in the pricing of our pumps and replacement parts.
Our partnership doesn't end once you have your pumps. After your products are in use, we will reach out to collect your feedback and evaluate how the diaphragm pumps are working for you. As the market changes and new needs develop, we respond with innovative, suitable solutions.
Let's create your diaphragm pump
Every product is different, and some are one of a kind. We’re excited to hear about your products and how Dynaflo, Inc. can provide you with a competitive edge.
